Types of Connections

Different supports and different connections have different types of reaction forces depending on what they are constraining. For example, a pin connection restricts movement in the x-and y-directions but doesn't restrict rotation. This means that each pin connection has two reaction forces: one in the x-direciton, and one in the y-direction corresponding to the degrees of freedom that are fixed. A roller support only constrains movement in the y-direction, and thus only has one reaction force (oriented in the y-direction).

Redundant Constraints

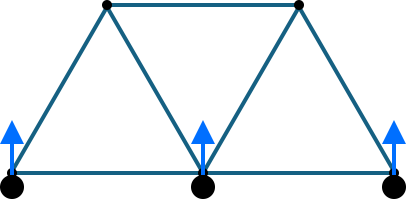

If a body has more supports than it needs to hold it in equilibrium, it is overly constrained. This will result in more unknown reaction forces than equations we can write, and the problem will not be solvable using statics alone. This type of system is a "statically indeterminate" system.
